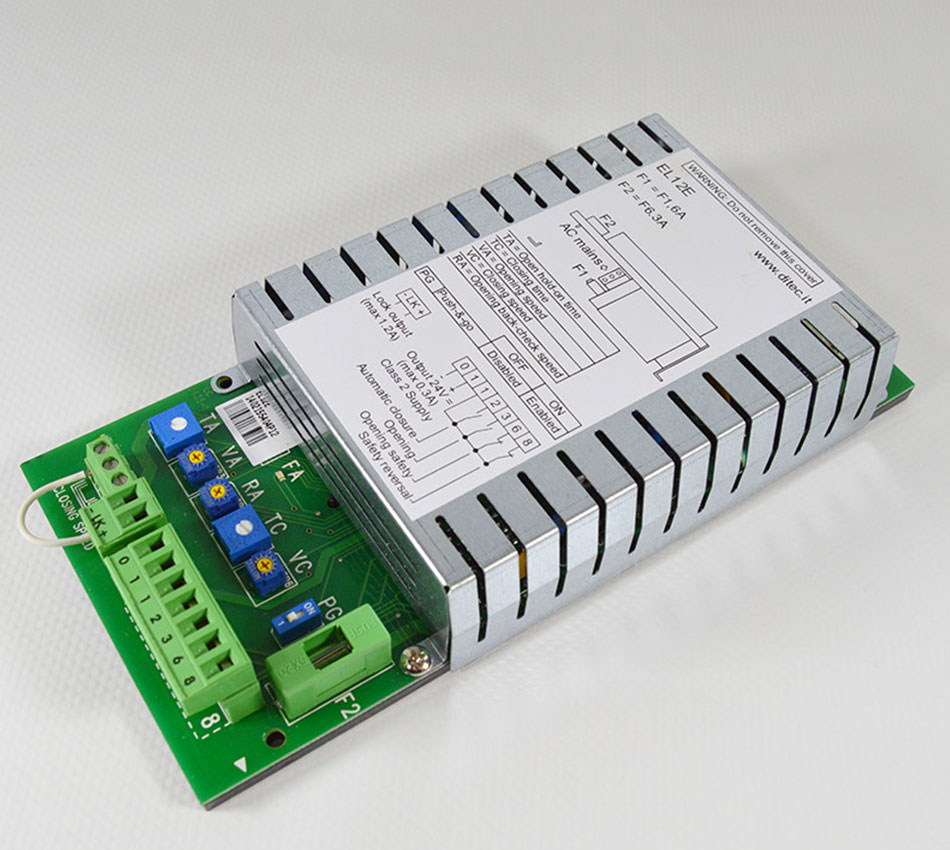

EL12E WEL E Control Panel

EL12E Control Panel for use with the Ditec Entrematic WEL E Low Energy Operator.Wiring provisions on EL12E Control Panel24V dc MotorOpening & closing limit switchesClosing speed adjustmentLock output, 24Vdc / 1.2A maximumAccessory output, 24Vdc / 0.5A maximumN/O Automatic closing triggerN/O Opening triggerN/C Opening Safety triggerN/C Closing Safety triggerPotentiometers includeTA – Opening command durationTC – Hold open timeVA – Opening speedVC – Closing speedRA – Opening speed slow down (when triggered by limit switch)For the WEL S and WEL M Fully Automatic Operators, Click here to navigate to the QE99 Control Panel
