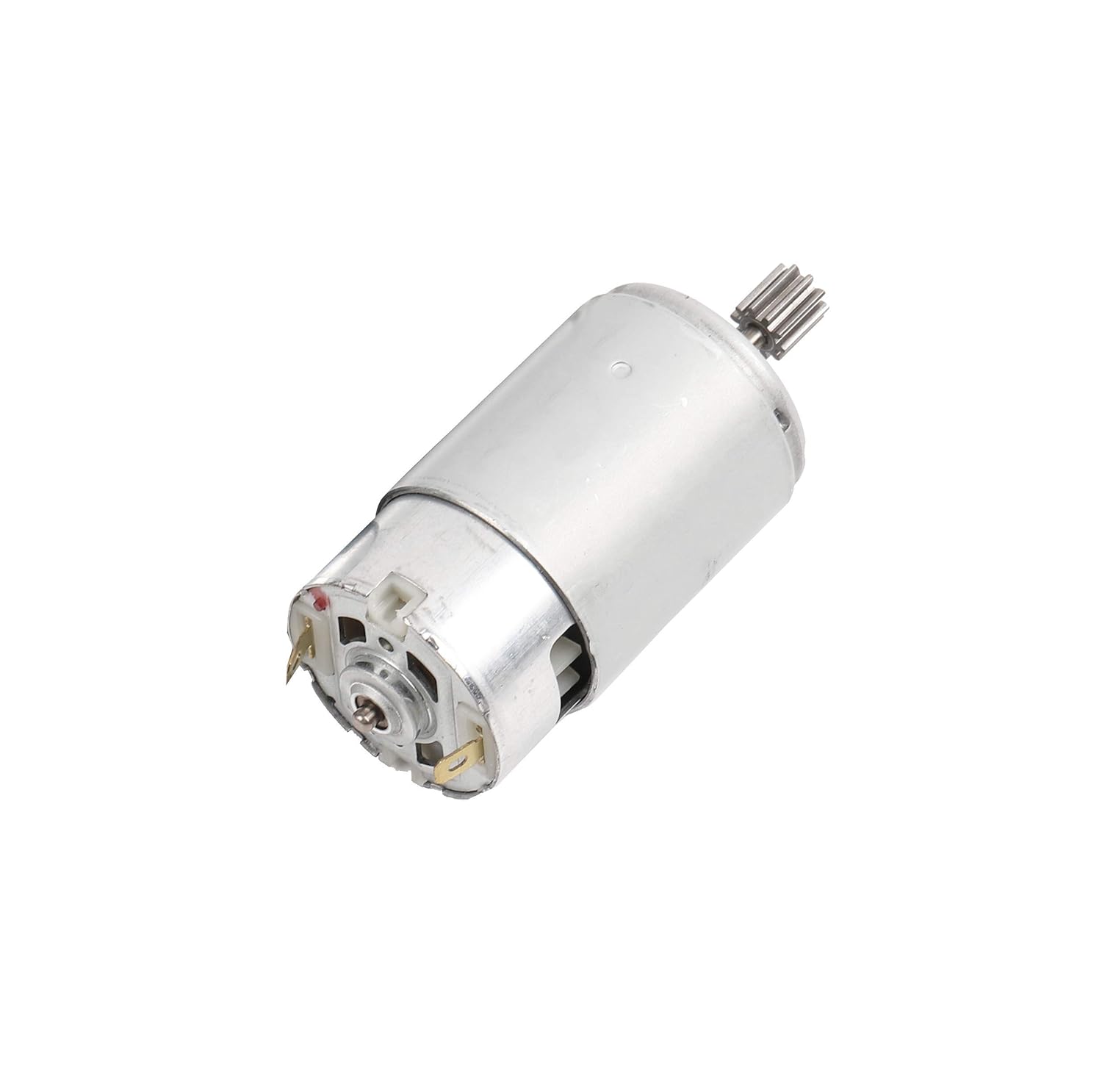

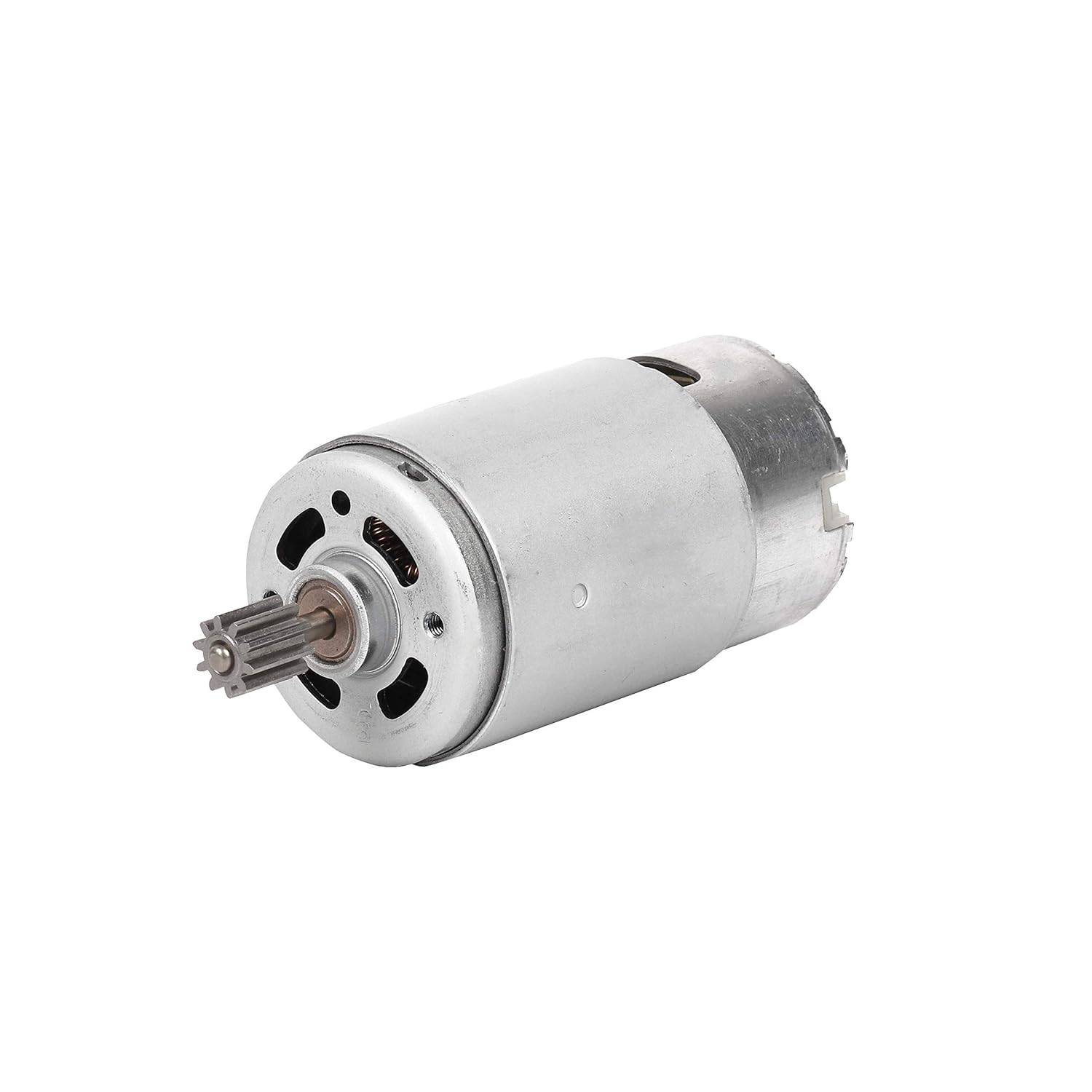

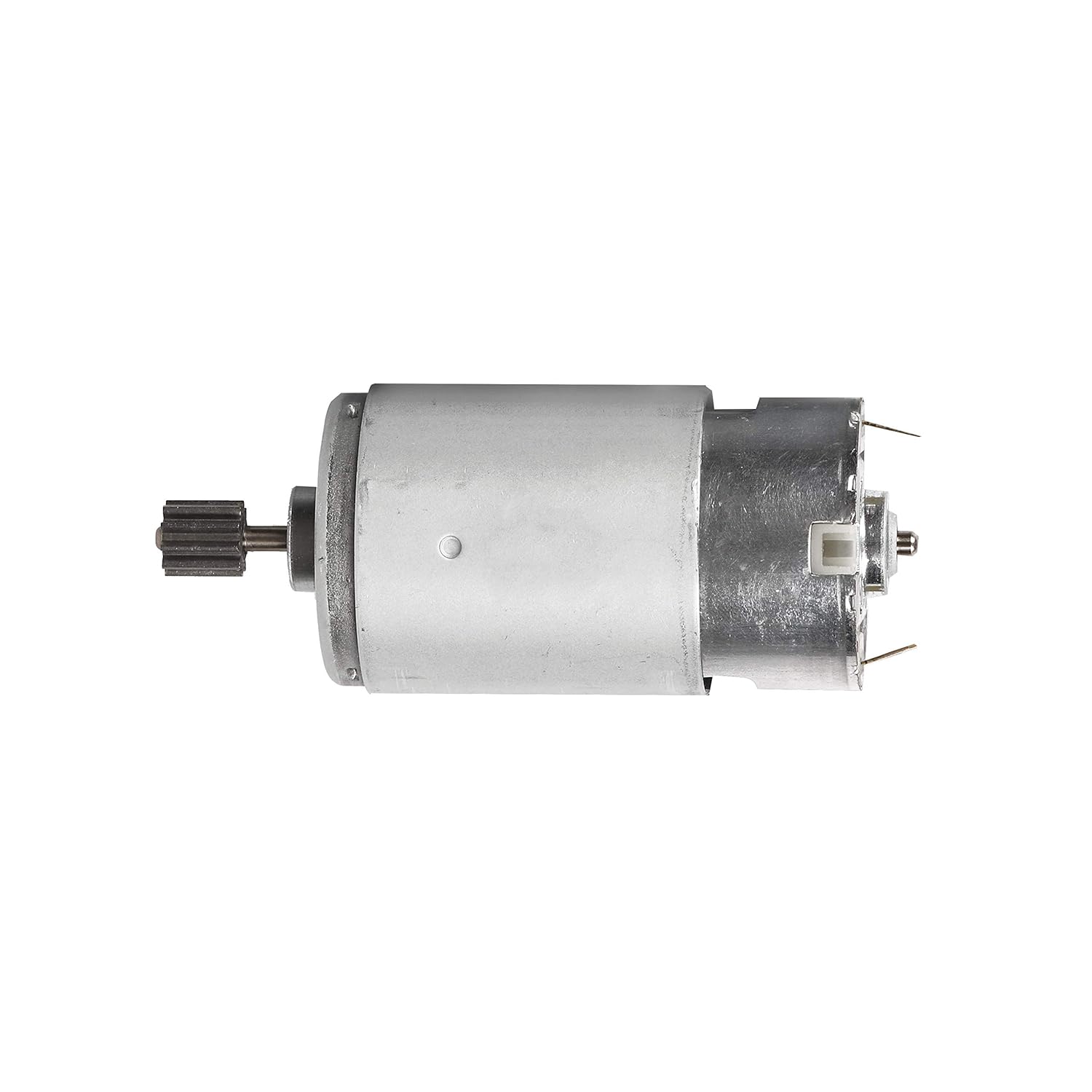

12 Volt Motor for Peg Perego Kids Ride on Car,12V Replacement Gearbox Motor for Peg-Perego for Polaris RZR 900 for John Deeree Gator XUV for Gaucho Rock’in

Motor worked great. No instructions so here’s a rough version below to help you.It takes about 20 minutes to install. Sorry no photos.Gator UTV with dump bed install instructions.Disconnect battery.Remove red plastic plastic pin on front of dump bed that holds the bed to the height adjuster.Lift open the bed to 90 degrees and remove two more plastic push pins on dump bed hinges.I did this without removing the seats but removing the seats will help prevent bending tabs. Mine didn’t break from bending the tabs but it’s up to you how cleanly you want to do this installation.Plastic body panel below dump bed can now be lifted up from the rear. There are two tabs on the front side of this panel that will pop out. If you choose to remove the seats you want to pop the panel connectors from the front to the back.Once the panel is removed you will see the two motors. I only replaced the driver side motor since the other one was still working.Remove one rear wheel and then slide the other wheel with shaft completely from the vehicle.Remove two phillips screws on white gear housing for the motor you are replacing.There is a small round plastic spacer you need to remove to let the gear housing move inward and then out.Now remove the two phillips screws holding the motor to the gear housing.Grease new gear if you prefer. I added a little bit of silicone paste because I had some. If you don’t have any already I probably wouldn’t bother with this step.Connect red wire to the terminal with a red mark. Connect other wire to the only other terminal.TEST OPERATION of motor before reassembly.Repeat steps for motor if you are replacing both motors. I decided I would only replace the broken one for now since installation is so easy. I just got a spare motor so I can do a quick fix if it fails again in the future.Reverse these steps to reinstall all of the plastics.Do not forget to install the circle spacers. NOTE: the wheel shaft/axle goes through the spacers. They are kind of difficult to hold in place while pushing the shaft through it so maybe grab a helper.Your kid(s) should be ready to rip! Enjoy!
