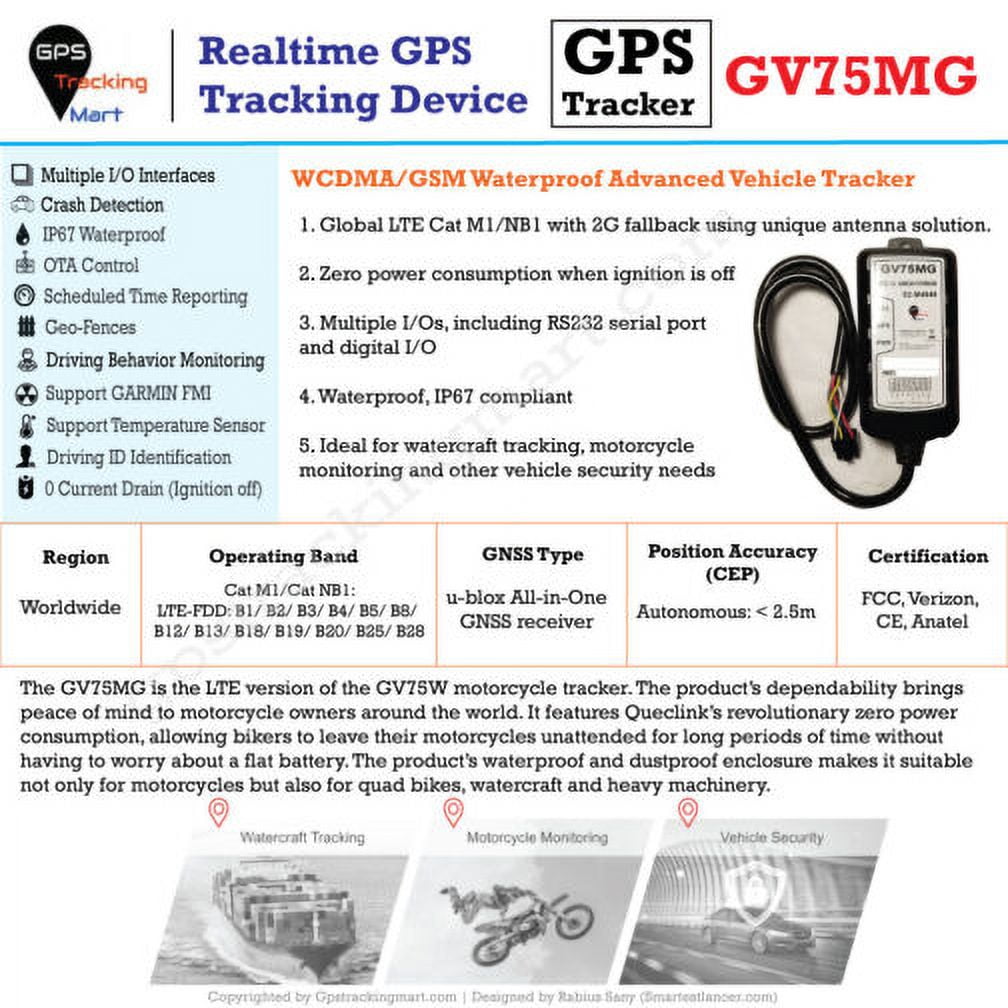

GTM Queclink GV75M 4G Car Motorcycle Vehicle GPS Tracker Worldwide, Waterproof Real Time Locator, Li-Polymer 700mAh, w/Geo-Fencing Emergency Alarm Extended Backup Battery Driving Behavior Monitor

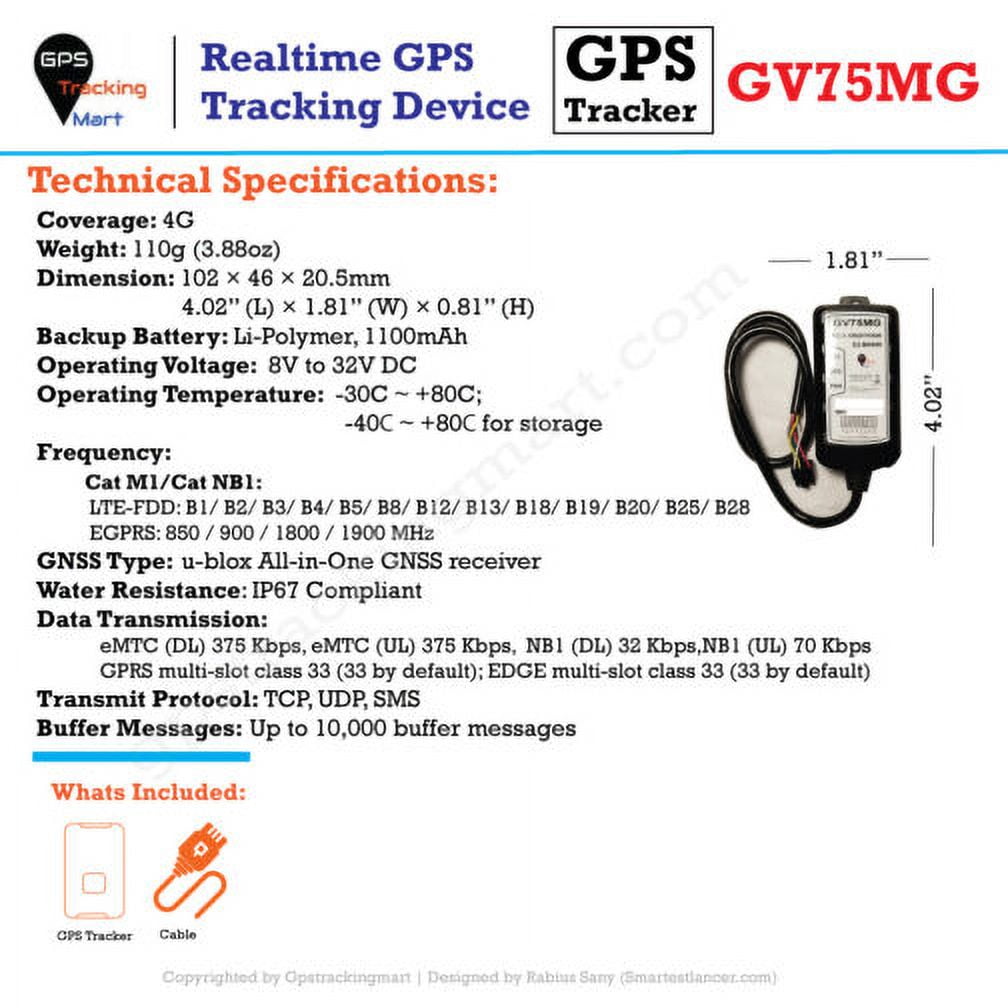

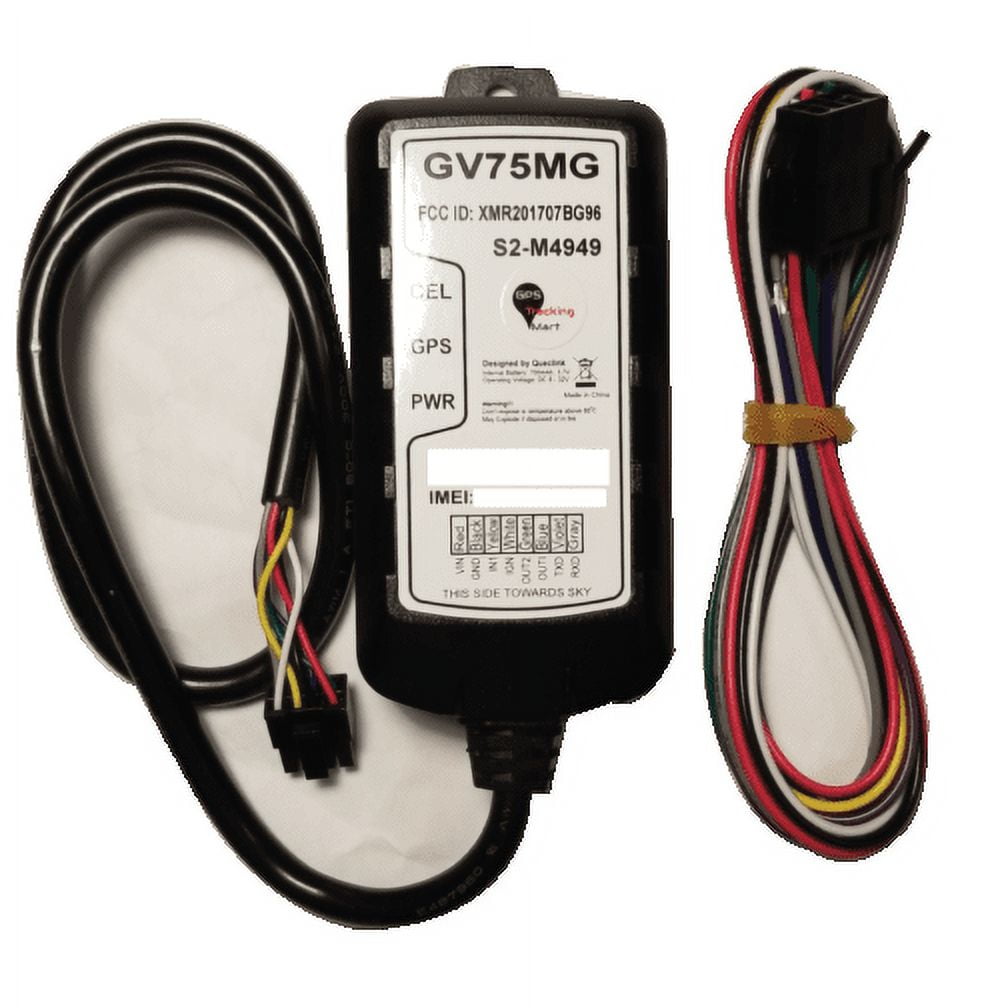

Waterproof Advanced Motorcycle and Vehicle Tracking Device The GV75M is a compact waterproof GPS tracker designed for a wide variety of vehicle tracking applications. It has multiple I/O interfaces that can be used for monitoring or controlling external devices. Its built-in GPS receiver has superior sensitivity and fast time to first fix. It supports 2G GSM, LTE CAT-M1 (eMTC), LTE CAT-NB1 (NB-IoT) on many bands supporting North American and European Cellular Operators, allowing the GV75M’s location to be monitored in real-time or periodically tracked by a backend server and mobile devices. Its built-in 3-axis accelerometer allows motion detection and extends battery life through sophisticated power management algorithms. System integration is straightforward as complete documentation is provided for the full-featured @Track protocol. The @Track protocol supports a wide variety of reports including emergency, geo-fence boundary crossings, driving behavior, low battery and scheduled GPS position. General Specifications MODEL: GTM GV75M Technology: GSM/LTE (eMTC/NB-IoT) Dimensions: 102mm*46mm*20.5mm Weight:110g (3.88oz) Back Up Battery: Li-Polymer 700 mAh Waterproof: IP67 compliant Operation Voltage: 8V to 32V DC Operating Temperature: “(-30°C~ 70°C & -40°C ~ 80°C for storage)” Air Interface Protocol Geo-Fence: Geo-fence alarm and parking alarm, support up to 20 internal geo-fence regions Transmit Protocol: TCP, UDP, SMS Scheduled Time Report: Report position at preset time and distance intervals Low Power Alarm: Alarm when backup battery is low Power On Report: Report when the device is powered on Driving Behavior Monitoring: Aggressive driving behavior detection, e.g. harsh braking and acceleration TCP, UDP, SMS Transmit Protocol; Operating Band: Cat M1/Cat NB1 — LTE-FDD: B1/ B2/ B3/ B4/ B5/ B8/ B12/ B13/ B18/ B19/ B20/ B25/ B28; EGPRS 850 / 900 / 1800 / 1900 MHz; Support GPRS multi-slot class 33 (33 by default) and EDGE multi-slot class 33 (33 by default); Wide operating voltage range 8V to 32V DC; Internal u-blox chipset; Embedded full featured @Track protocol; Two digital inputs – One positive trigger for ignition detection, One negative trigger input for normal use(Compatible with TPM); One digital output, open drain, 150 mA max current drain; LED, CEL, GPS and power Indicator; Accident data collection for reconstruction and analysis; Low power consumption, long standby time with internal battery. Internal UMTS/HSDPA and GSM antennas; One RS232 serial port on 8 wire cable, for external devices (GARMIN protocol support); One USB port on 11 pin cable, for upgrade; Special alarm based on the digital/analog inputs; Internal 3-axis accelerometer supporting driving behavior monitoring, power saving and motion detection; Dimensions: 102mm * 46mm * 20.5mm; Weight: 110g (3.88oz); Li-Polymer 700 mAh Backup Battery; Waterproof: IP67 compliant; OTA control of outputs Ideal for watercraft tracking, motorcycle monitoring and other vehicle security needs. FCC, Verizon, CE, and Anatel certified. To activate your tracking service please follow the note/instruction insert that comes with your GPS tracker.
